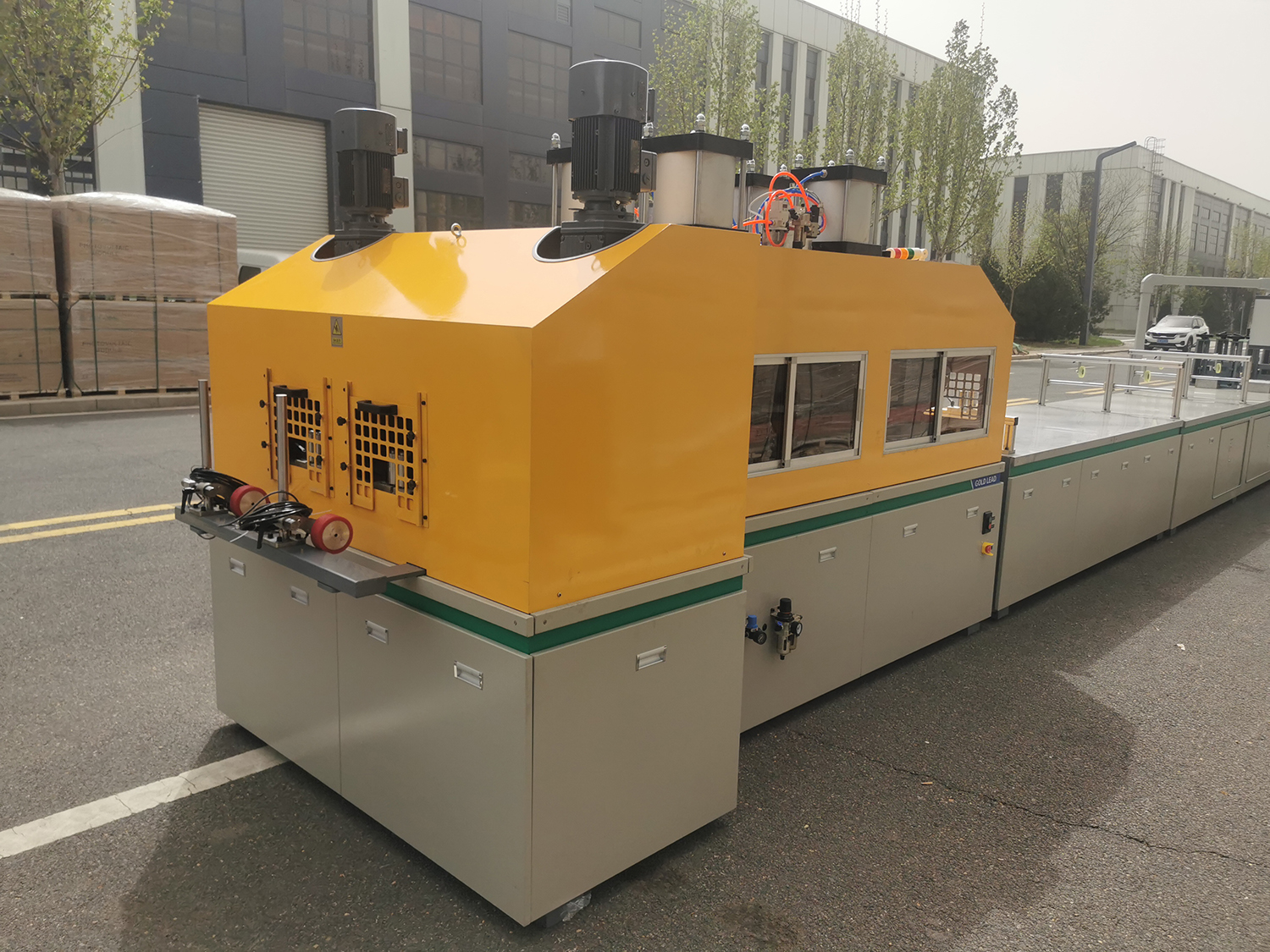

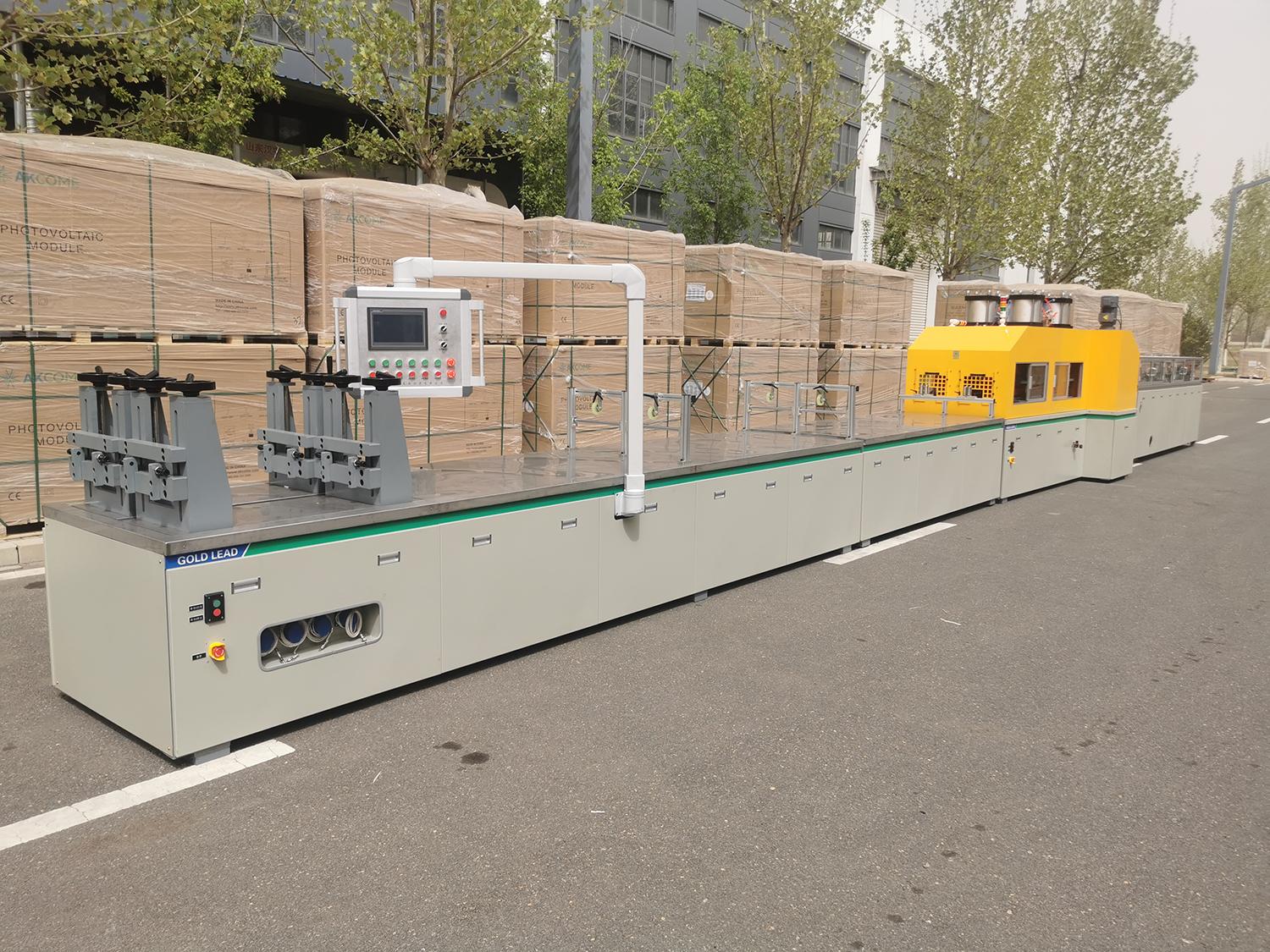

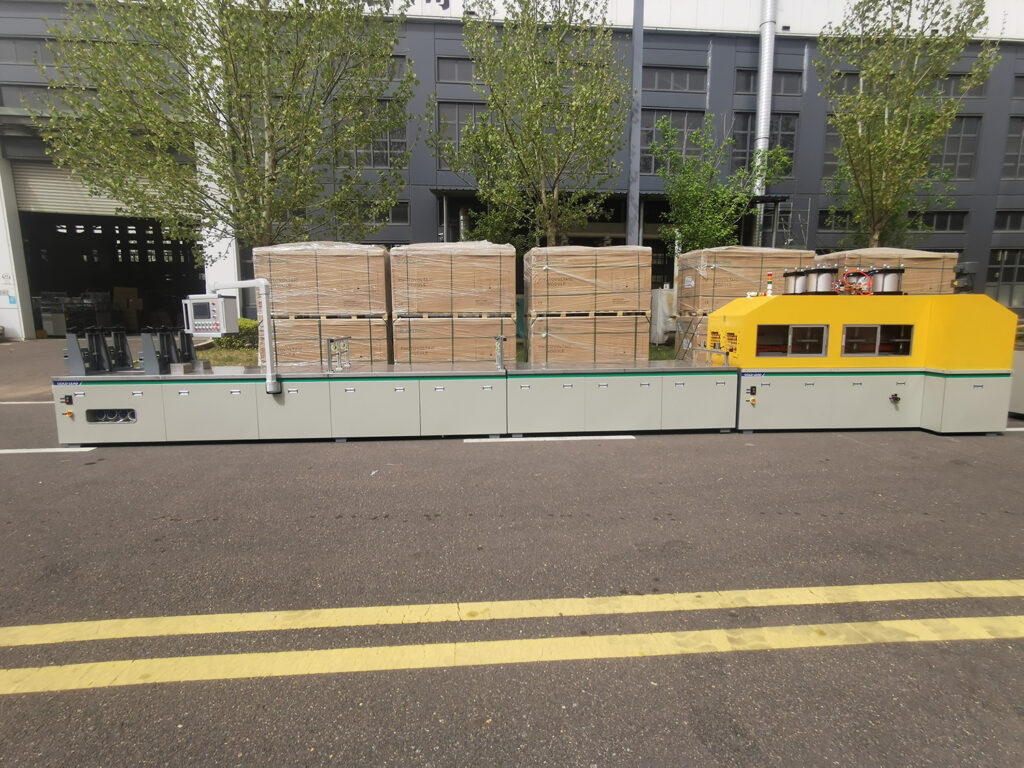

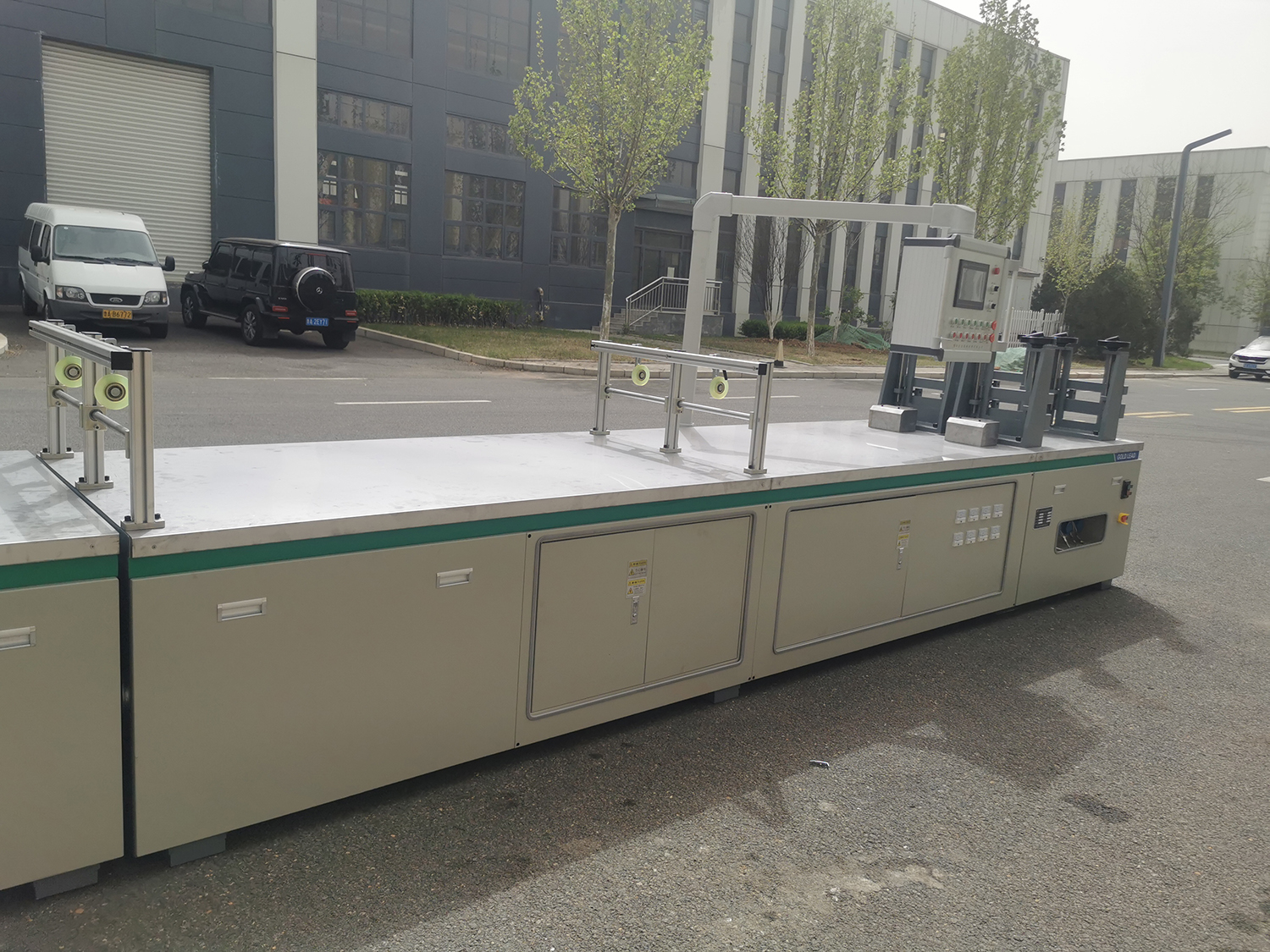

Two-Lines / Three-Lines Servo Hydraulic Type Pultrusion Production Line
PRODUCT PARAMETERS
Description
Two-Lines/Three-Lines Servo Hydraulic Type Pultrusion Production Line is an advanced composite profile manufacturing system designed for high-efficiency continuous pultrusion production.
The equipment adopts servo hydraulic driving technology and multi-line independent production structure, enabling simultaneous production of two or three profiles. With precise control of pulling speed, temperature and clamping force, it provides stable operation, high efficiency and excellent product consistency.
Product Features
1. Intelligent HMI Touchscreen Control
The equipment uses an interactive HMI touchscreen control system. Pulling speed, temperature and clamping force can be displayed and adjusted through the interface.
2. Stable Hydraulic Driving System
Hydraulic cylinder seals are imported, ensuring stable operation and reliable power output.
3. Multi-Profile Simultaneous Production
The equipment can produce two or three profiles at the same time with two/three independent production systems.
4. Independent Servo Hydraulic Control
Servo hydraulic system provides precise pulling force control and improves production stability.
5. High-Quality Electrical Components
Main electrical and hydraulic components are sourced from well-known domestic and international brands.
Main Technical Parameters
| Parameter | Specification |
|---|---|
| Mold Mounting Width | 130 mm |
| Mold Mounting Length | 900 mm |
| Temperature Zones | 8 |
| Control System | Touch Screen |
| Injection System | Two independent injection systems |
| Injection Method | Constant pressure & constant flow resin injection |
| Max. Pulling Force | 100 kN |
| Max. Pulling Reciprocating Stroke | 800 mm |
| Max. Clamping Force | 70 kN × 2 |
| Clamping Cylinder | Two independent cylinders |
| Pulling Speed | 0.2-1.2 m/min |
| Hydraulic System Power | 4.4kW × 2 + 3.3kW |
| Clamping Width | 220 mm × 2 |
| Upper & Lower Clamping Platen Length | 900 mm |
| Cutting Saw Heads | 2 |
| Main Electrical Components | Omron |
