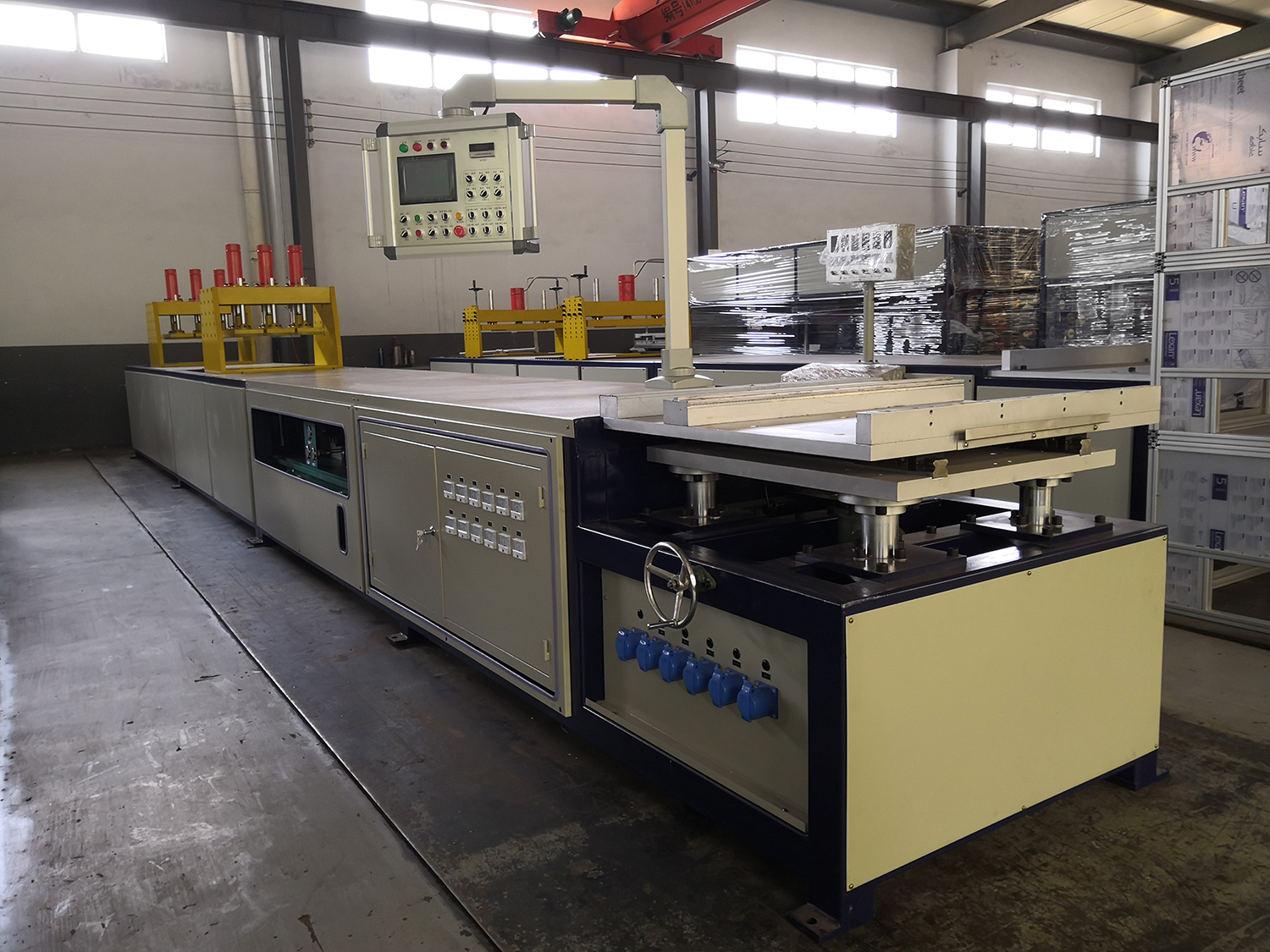

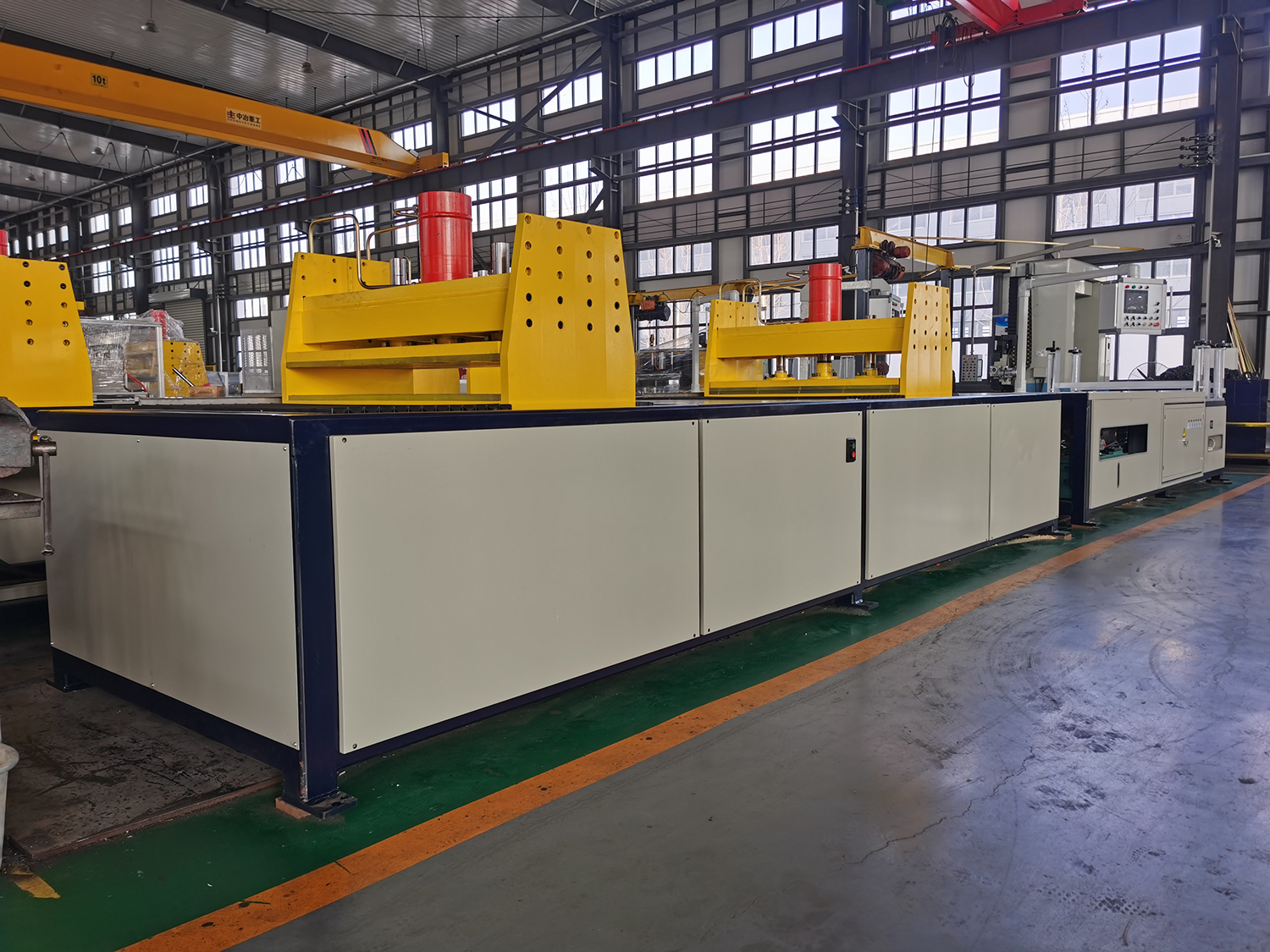

Composites Hydraulic Reciprocating Pultrusion Machine
PRODUCT PARAMETERS
Description
The Composites Hydraulic Reciprocating Pultrusion Machine is specially designed for continuous production of large-section composite profiles. Equipped with a powerful hydraulic traction system and intelligent PLC control, it provides stable pulling force, precise control, and reliable operation.
The machine integrates hydraulic clamping, reciprocating pulling, automatic cutting, and intelligent monitoring functions, making it suitable for high-strength composite profiles requiring excellent dimensional accuracy and production efficiency.
Key Features
1. Powerful Hydraulic Pulling System
Designed for large cross-section composite profiles, the machine provides strong and stable pulling force to ensure smooth and reliable production.
2. Multiple Pulling Modes
Supports three selectable pulling modes:
- Single pulling mode
- Synchronized pulling mode
- Alternating pulling mode
Flexible operation allows easy adjustment according to different production requirements.
3. Independent Dual Hydraulic System
Equipped with an independent hydraulic system featuring strong anti-interference capability, ensuring stable operation and consistent product quality.
4. High-Quality Electrical & Hydraulic Components
Main electrical and hydraulic components adopt well-known domestic and international brands, providing high sensitivity, reliability, and low failure rates.
5. Intelligent HMI Control System
Equipped with an interactive HMI touchscreen interface for convenient operation, parameter setting, and real-time production monitoring.
6. Remote Control Capability
Supports Ethernet communication for remote operation and system management.
7. Integrated Fault Warning Function
Built-in fault detection and warning functions improve equipment safety and reduce maintenance time.
8. Customized Configuration
Clamping envelope, production parameters, control methods, and dust collection systems can be customized according to customer requirements.
Hydraulic Reciprocating Pultrusion Machine:
| Model | LJ-Y-200 | LJ-Y-300 | LJ-Y-400 | LJ-Y-500 | LJ-Y-800 |
|---|---|---|---|---|---|
| Max. Pulling Force | 200 kN | 300 kN | 400 kN | 500 kN | 800 kN |
| Max. Clamping Force | 200 kN | 300 kN | 400 kN | 500 kN | 800 kN |
| Pulling Speed | 0.1-1 m/min | 0.1-1 m/min | 0.1-0.6 m/min | 0.1-0.5 m/min | 0.04-0.36 m/min |
| Hydraulic System Power | 2×4 kW | 2×5.5 kW | 2×5.5 kW | 2×5.5 kW | 2×7.5 kW |
| Clamping Envelope | 800×300 mm | 800×300 mm | 800×300 mm | 1000×300 mm | 1500×400 mm |
| Hydraulic Pressure | 2-16 MPa | 2-16 MPa | 2-16 MPa | 2-16 MPa | 2-16 MPa |
| Air Pressure | 0.4-0.6 MPa | 0.4-0.6 MPa | 0.4-0.6 MPa | 0.4-0.6 MPa | 0.4-0.6 MPa |
| Control Mode | PLC | PLC | PLC | PLC | PLC |
Technical Parameters
| Model | LJ-SY-200 | LJ-SY-300 | LJ-SY-500 |
|---|---|---|---|
| Driving Mode | Servo Hydraulic | Servo Hydraulic | Servo Hydraulic |
| Pulling Force | 200 kN | 300 kN | 500 kN |
| Power | 5.5 kW×3 | 7.5 kW×2+5.5 kW | 5.5 kW×3 |
| Clamping Mode | Hydraulic Type | Hydraulic Type | Hydraulic Type |
| Max. Clamping Envelope | 800×300 mm | 800×300 mm | 1050×300 mm |
| Pulling Speed | 0.1-1.0 m/min | 0.1-1.0 m/min | 0.1-0.5 m/min |
| Operation Mode | Manual / Automatic | Manual / Automatic | Manual / Automatic |
| Mold Mounting Length | 900/1200 mm | 900/1200 mm | 900/1200 mm |
FAQs
What types of products can we offer?
We provide complete production solutions for composite material manufacturing, including FRP pultrusion production lines, FRP rebar production lines, CFRP pultrusion machines, winding and braiding production lines, and related auxiliary equipment. We also offer customized equipment solutions according to different application requirements.
What industries are your machines suitable for?
Our equipment is widely used in construction, infrastructure, transportation, renewable energy, aerospace, marine engineering, and other composite material application fields. We continuously develop reliable solutions to meet the needs of different industries.
Can the equipment be customized according to our requirements?
Yes. We provide OEM and customized manufacturing services. According to your product specifications, production capacity requirements, and factory conditions, our engineering team can design and optimize the equipment configuration to achieve the best production performance.
What is the ordering process?
The ordering process usually includes technical communication, solution confirmation, quotation, contract signing, equipment production, factory inspection, and shipment. We will keep close communication with customers throughout the project to ensure smooth delivery.
What services are included in the after-sales service?
We provide comprehensive after-sales support, including equipment installation guidance, operation training, technical consultation, and maintenance assistance. Our professional team is always available to help customers improve production efficiency and ensure stable equipment operation.
