CFRP Pultrusion Machine
PRODUCT PARAMETERS
Description

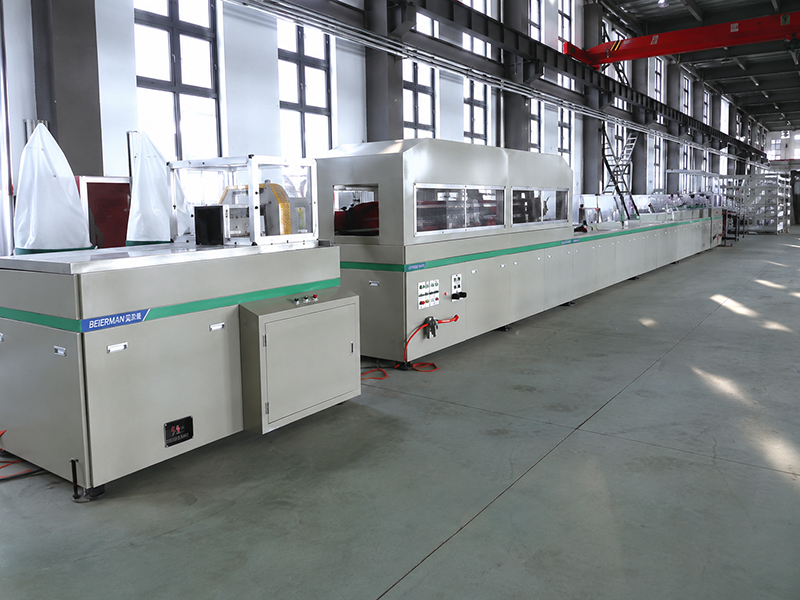

CFRP Pultrusion Machine is an advanced production line designed for manufacturing carbon fiber reinforced polymer (CFRP) profiles, conductor cores and sucker rods.

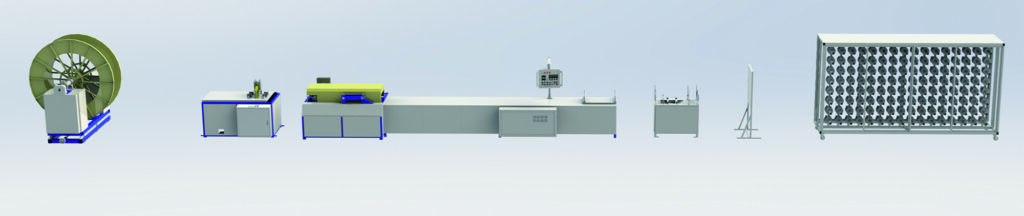

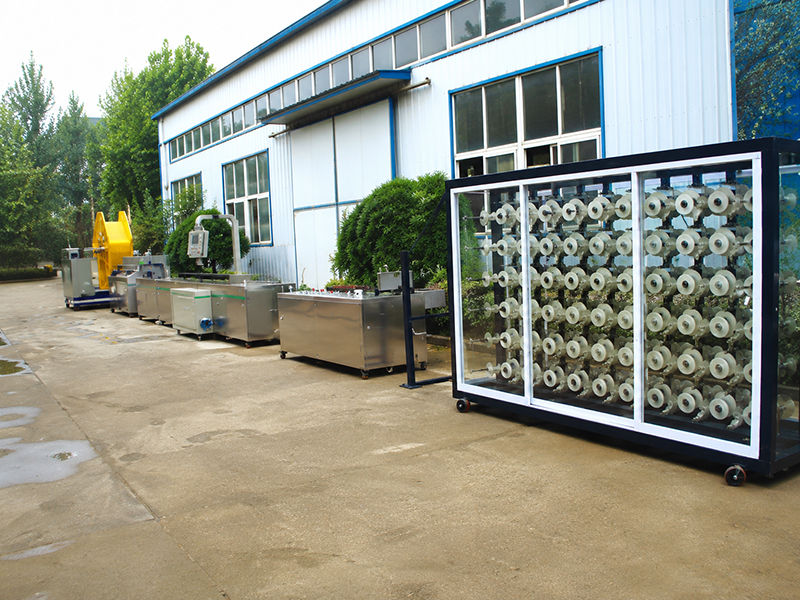

The equipment adopts continuous pultrusion technology, integrating fiber unwinding, resin impregnation, heating curing, pulling and product collection processes. With precise tension control, adjustable heating zones and stable pulling performance, it provides efficient and reliable solutions for high-strength carbon fiber composite products.
Product Features
1. Adjustable Tension Control

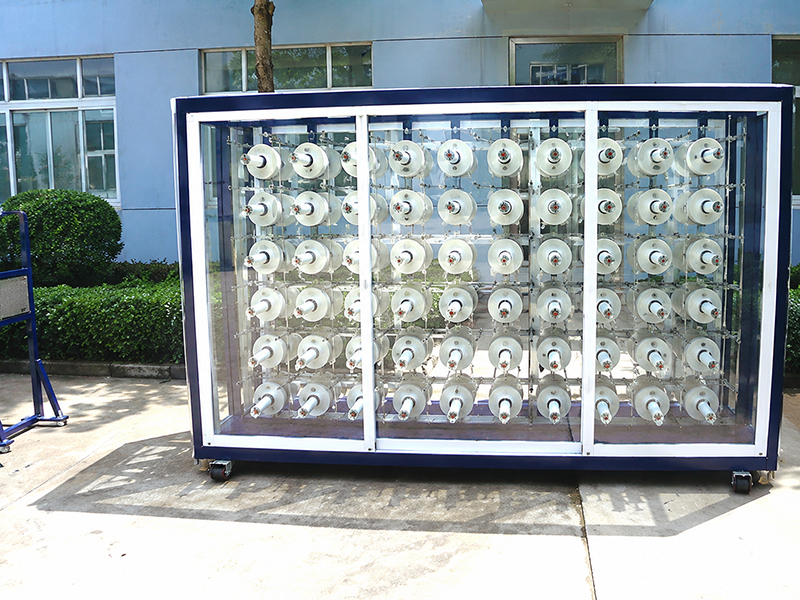

The tension of the creel can be adjusted individually or in groups, ensuring convenient operation and stable fiber feeding.
2. Precise Heating System

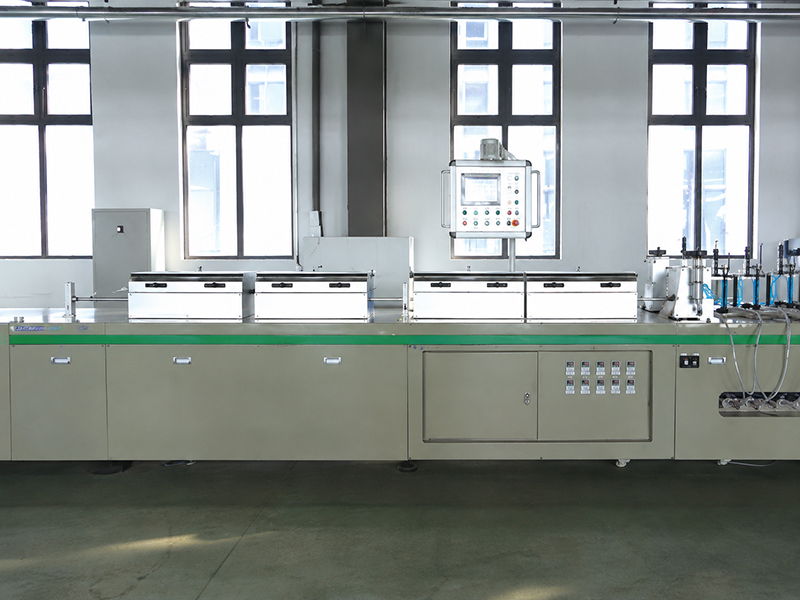

Heating zones and post-curing oven temperature can be continuously adjusted with high precision.
3. High Reliability Components
Main electrical components adopt well-known domestic and international brands for stable operation.
4. Intelligent Control Interface
Equipped with interactive HMI touchscreen interface for easy operation and monitoring.
5. Remote Control Capability
Supports remote control through Ethernet communication.
Main Technical Parameters：
| Parameter | Specification |
|---|---|
| Central Height of Machinery | 1000 mm |
| Total Power | ≈15 kW |
| Operating Air Pressure | 0.4-0.6 MPa |
| Air Consumption | ≈20 L/min |
| No. of Bobbins | 70 / 120 / 168 / 192 / 252 (Customizable) |
| Tension Regulation | Group control or individual control |
| Length of Shaping Platform | 900 mm |
| Width of Shaping Platform | 550 mm |

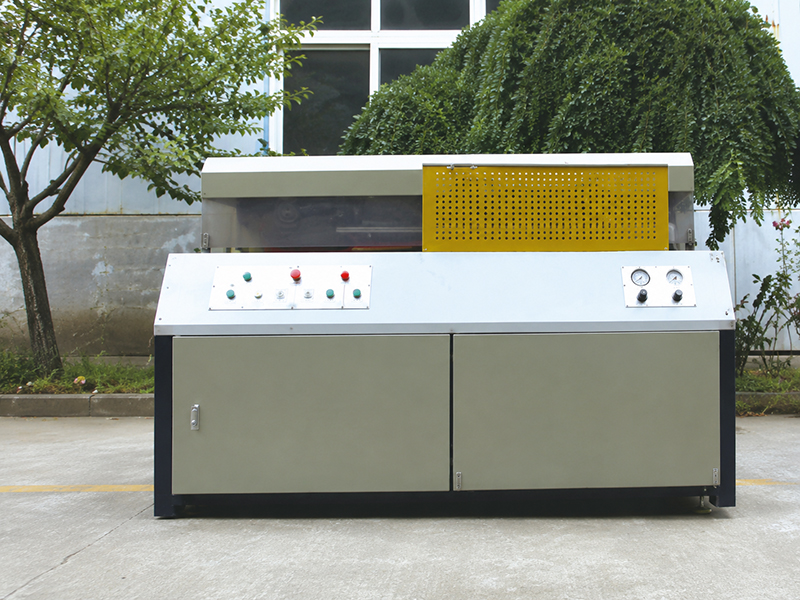

| Traction Speed | 0.2-2.0 m/min |
| Traction Force | 60 kN |
| Rolling Inner Diameter | Φ1500-2240 mm (Optional) |
| Rolling Speed | 0.1-2.0 m/min (Optional) |
FAQs
What types of products can we offer?
We provide complete production solutions for composite material manufacturing, including FRP pultrusion production lines, FRP rebar production lines, CFRP pultrusion machines, winding and braiding production lines, and related auxiliary equipment. We also offer customized equipment solutions according to different application requirements.
What industries are your machines suitable for?
Our equipment is widely used in construction, infrastructure, transportation, renewable energy, aerospace, marine engineering, and other composite material application fields. We continuously develop reliable solutions to meet the needs of different industries.
Can the equipment be customized according to our requirements?
Yes. We provide OEM and customized manufacturing services. According to your product specifications, production capacity requirements, and factory conditions, our engineering team can design and optimize the equipment configuration to achieve the best production performance.
What is the ordering process?
The ordering process usually includes technical communication, solution confirmation, quotation, contract signing, equipment production, factory inspection, and shipment. We will keep close communication with customers throughout the project to ensure smooth delivery.
What services are included in the after-sales service?
We provide comprehensive after-sales support, including equipment installation guidance, operation training, technical consultation, and maintenance assistance. Our professional team is always available to help customers improve production efficiency and ensure stable equipment operation.
